Pan World Pump PX Serie

Pan world PX/PI Series

Small capacity pump with single phase motor or 24 VCC integrated. It is aimed at original equipment ranges, fertigation, ice machines, food equipment water testing, etc.

  • Construction Materials: Polypropylene, PVDF or ETFE
  • Fittings: NPT/BSP, fluted.
  • Flow rate up to 80 l/min and delivery height up to 21 m.C.l.


Filter, Chemical Transfer, Heat Transfer, Computer Cooling, Refrigeration Systems, Ice Makers and Ice Flankers, Vending Equipment, Carbon Arc Furnace Cooling, Microchip Manufacturing, Aquariums, Semi-Conductor, Battery Industry, MC/CNC Machinery, Laboratory Application, Pharmaceutical

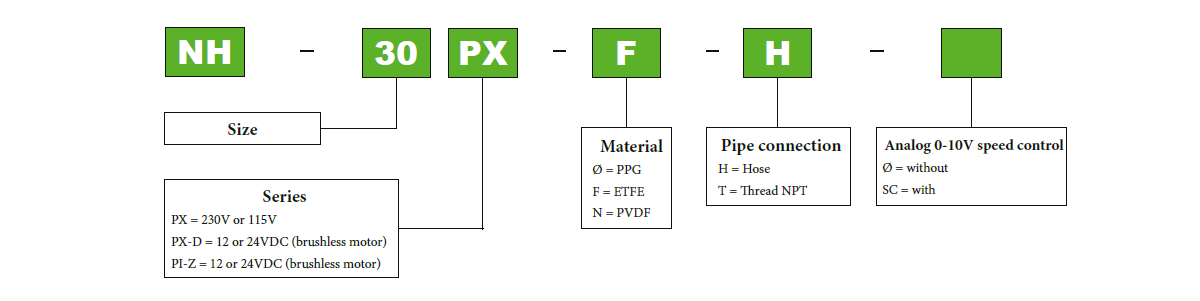

  • Ordering Information PX Serie Pan World

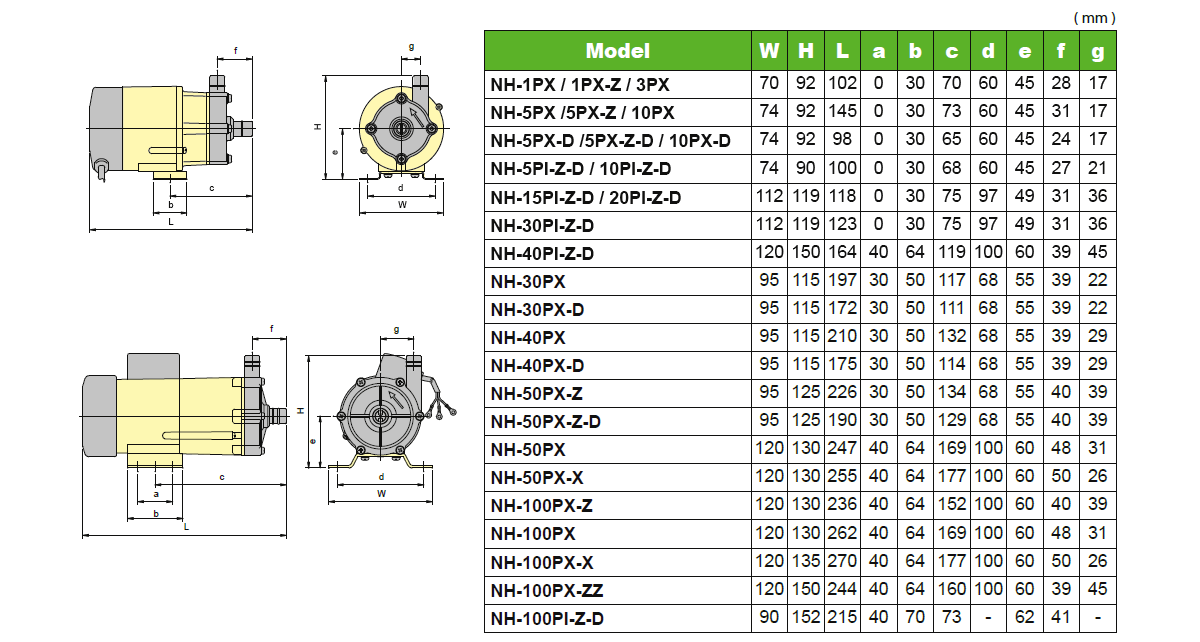

  • Installation dimensions PX Serie Pan World

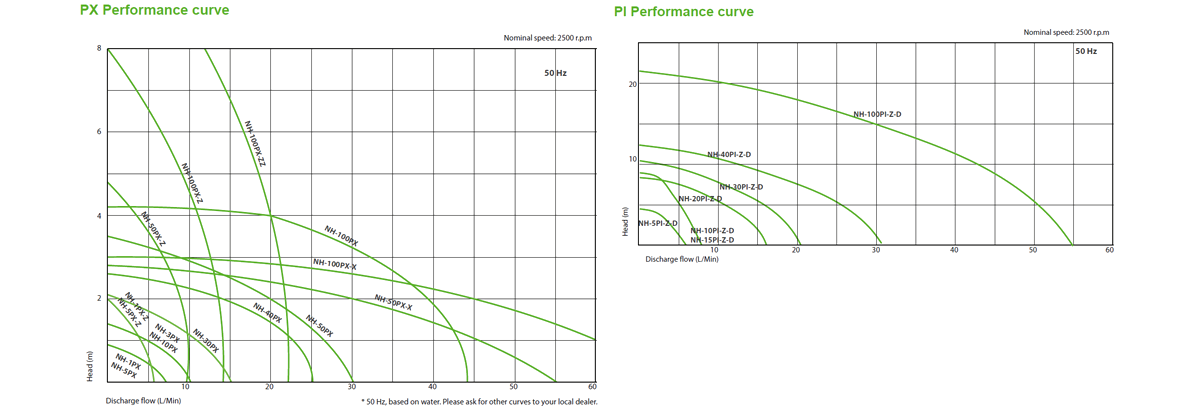

  • Performance curve PX Serie Pan World

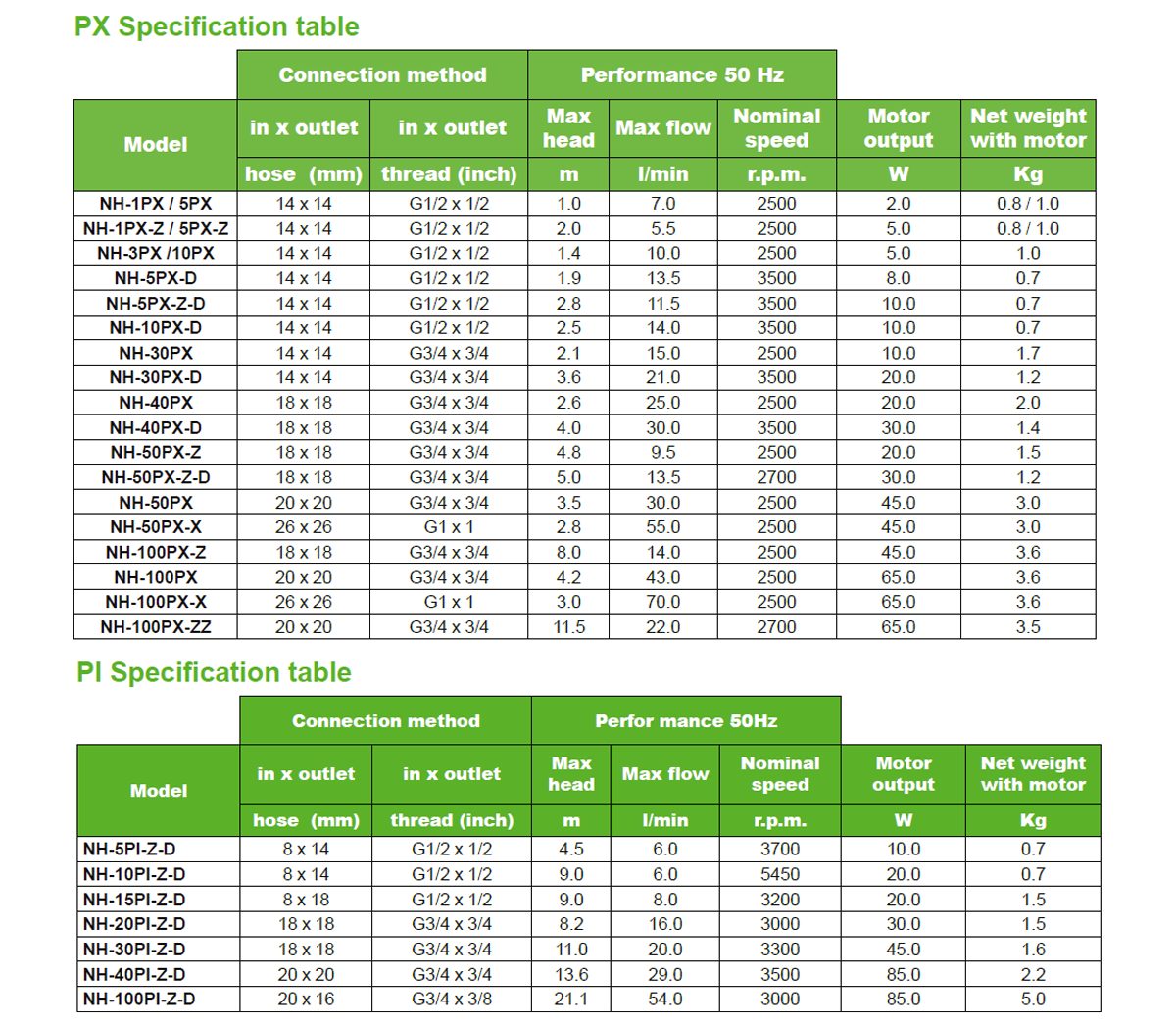

  • Specification table PX Serie Pan World

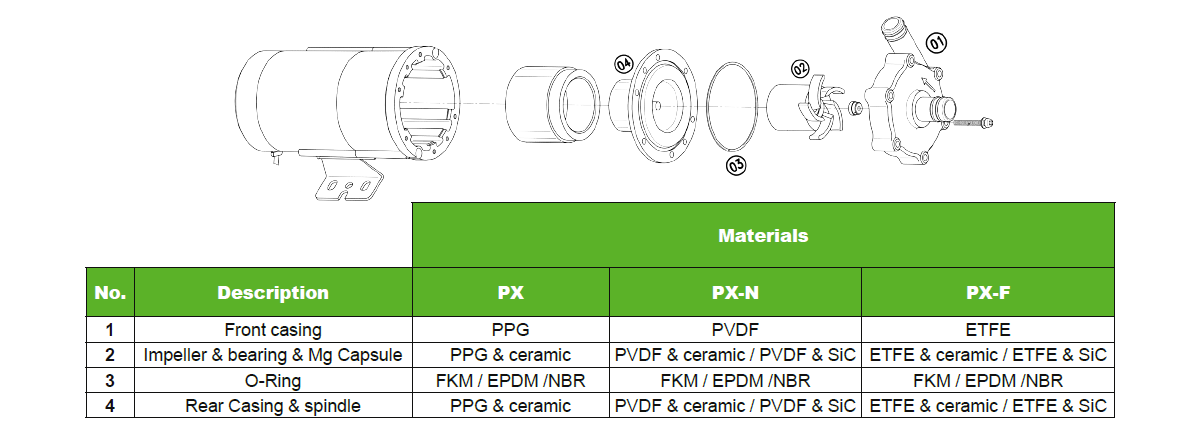

  • Parts Lists PX Serie Pan World
