Pan World Pump PW-C Serie

Pan world PW-C Series

Industrial pump for tough environments. The inner ETFE body is reinforced with a thick cast iron housing, increasing its mechanical strength and resistance to elevated temperatures. Pump is suitable for outdoor installation or demanding environmental conditions, with possibility of Atex certification.

  • Construction materials: Cast Iron coated ETFE
  • Connections: DIN or ANSI Flanges
  • Flow rate (50Hz) up to 1500 L/min and total discharge head of 44 m.



Surface Treatment(PCB Equipment, Etching Equipment, Solar Equipment, LED Equipment), Filter, Chemical, Eelctricostatic Plating, Water Treatment, Chemical Processing, Food Processing, Chemical Transfer, Semi-Conductor, Battery Industry, Paper Industry, Pharmaceutical

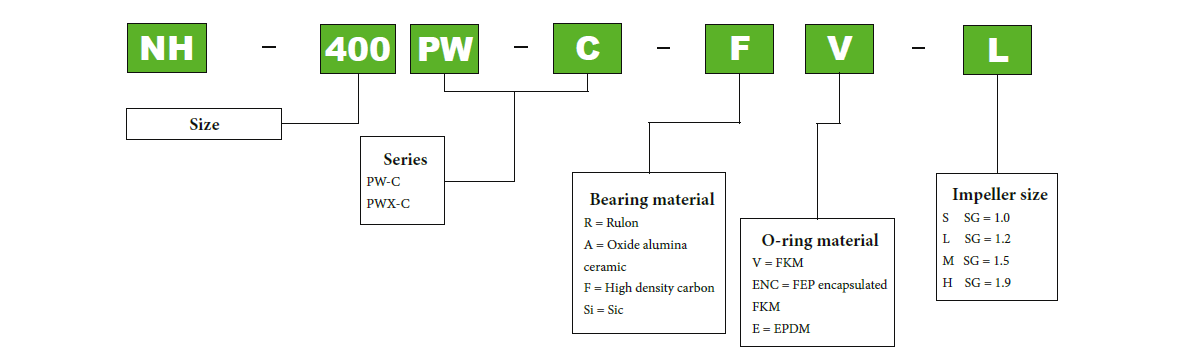

  • Ordering Information PW-C Serie Pan World

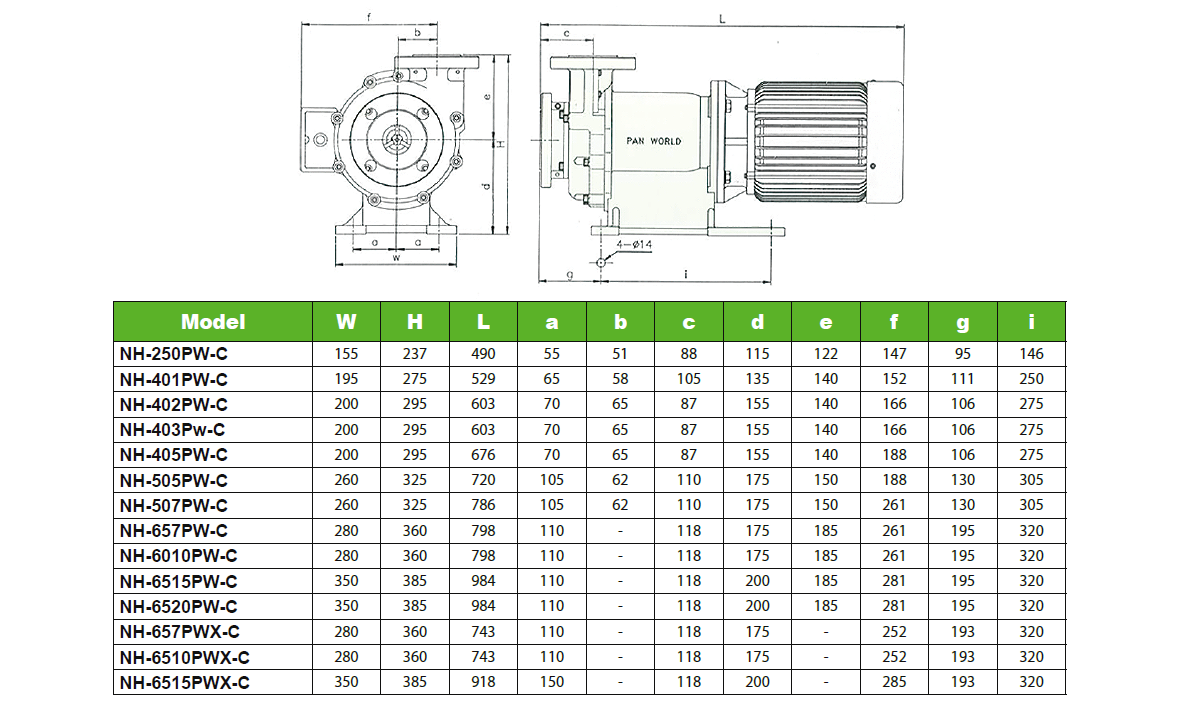

  • Installation dimensions PW-C Serie Pan World

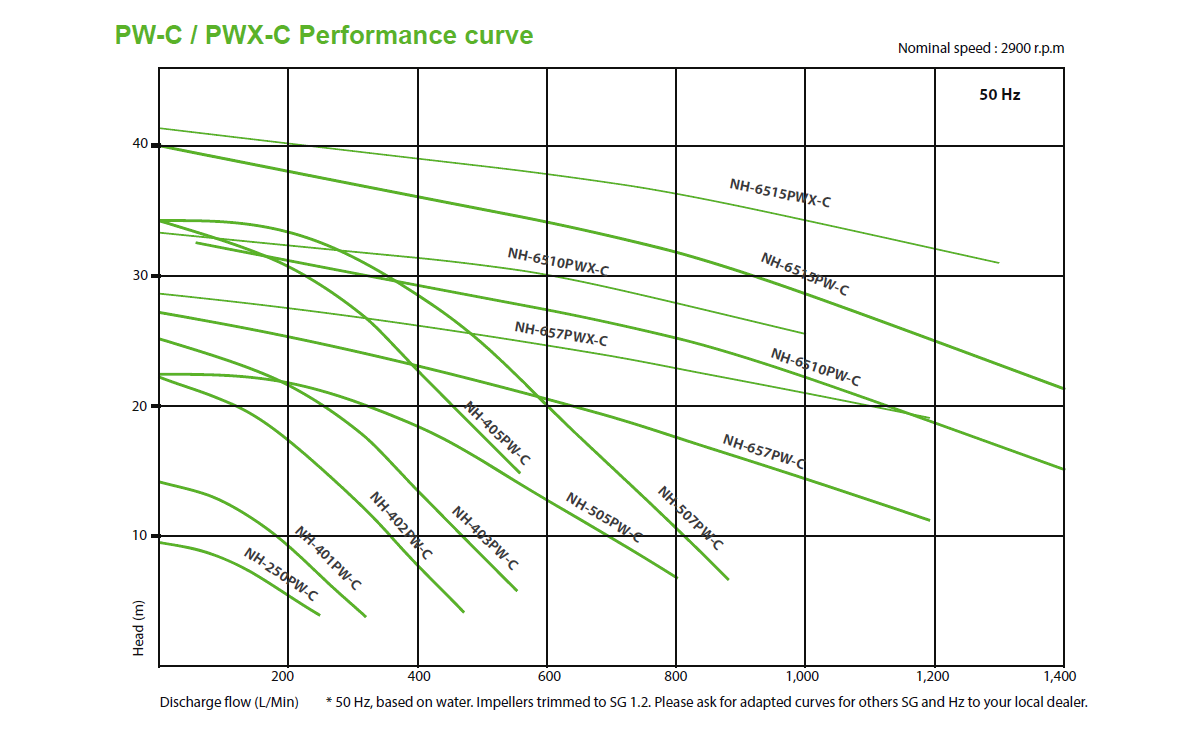

  • Performance curve PW-C Serie Pan World

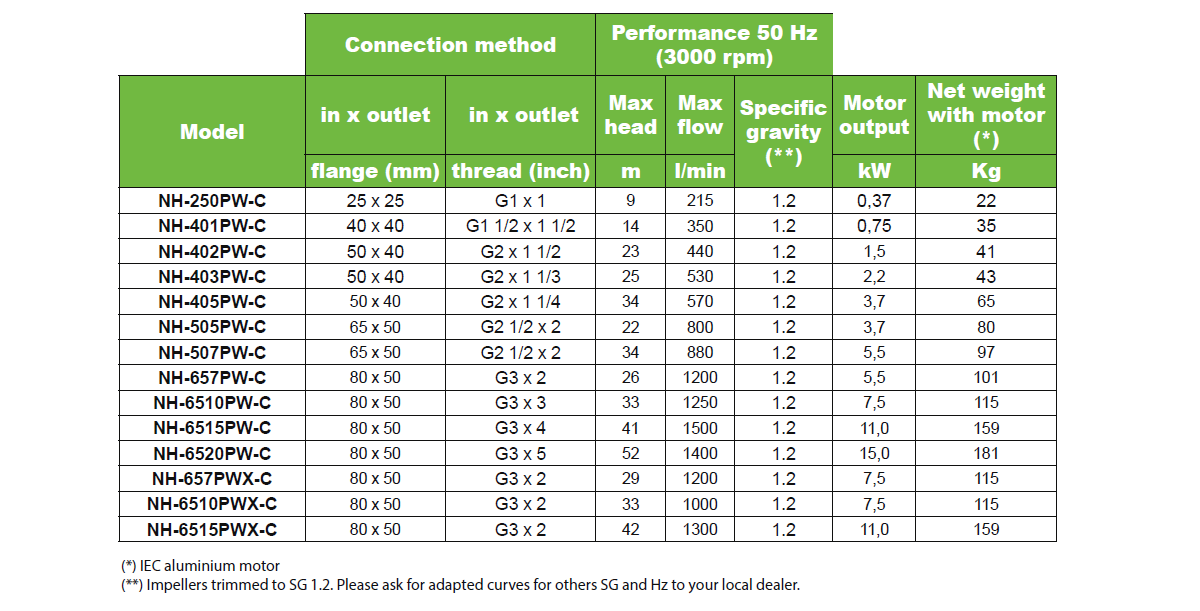

  • Specification table PW-C Serie Pan World

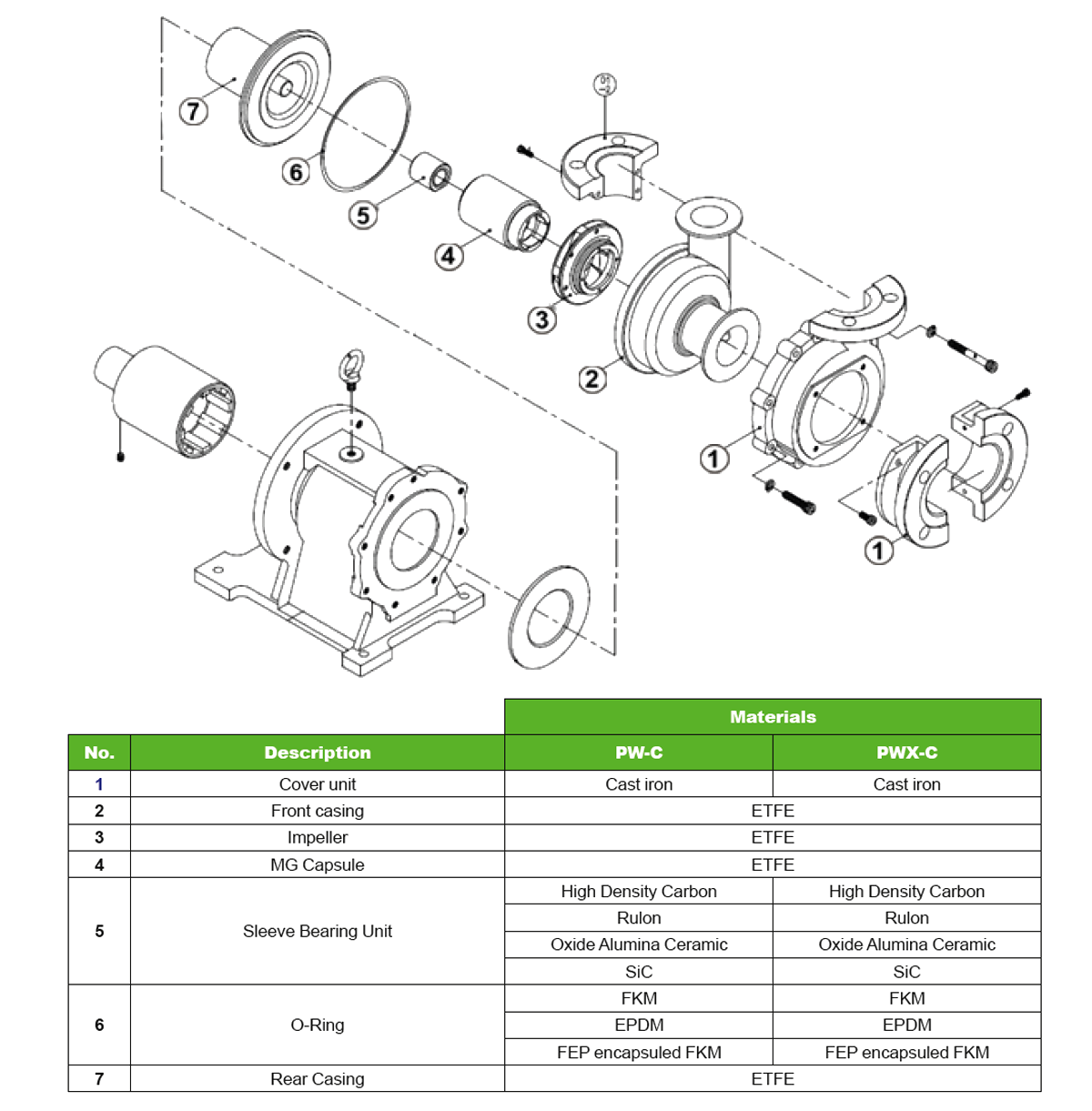

  • Parts Lists PW-C Serie Pan World
