Pan World Pump PS Serie

Pan world PS Series

Medium capacity pump with integrated single or three-phase motor. Aimed at OEM, fertigation, ice machines, food equipment water testing.

  • Construction materials: PPG, PVDF or ETFE
  • Connections: Thread NPT or BSP, hose spigot, DIN or ANSI Flanges
  • Flow rate (50Hz) up to 120 L/min and total discharge head of 20 m.


Filter, Chemical Transfer, Heat Transfer, Computer Cooling, Refrigeration Systems, Ice Makers and Ice Flankers, Vending Equipment, Carbon Arc Furnace Cooling, Microchip Manufacturing, Aquariums, Semi-Conductor, Battery Industry, MC/CNC Machinery, Laboratory Application, Pharmaceutical

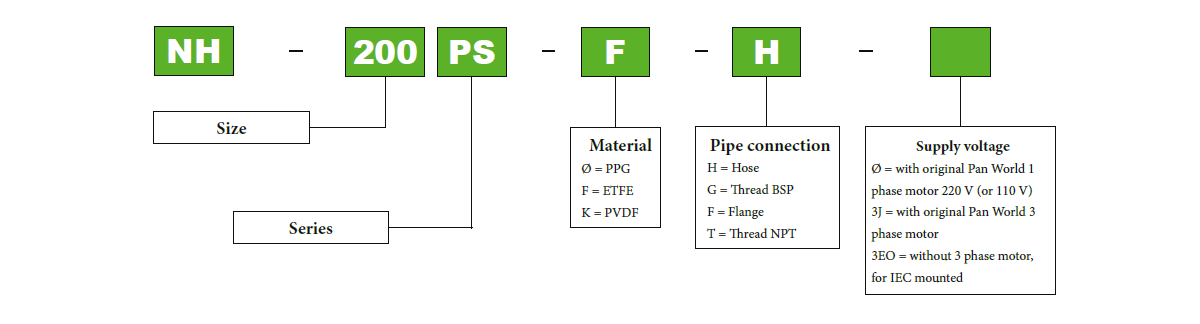

  • Ordering Information PS Serie Pan World

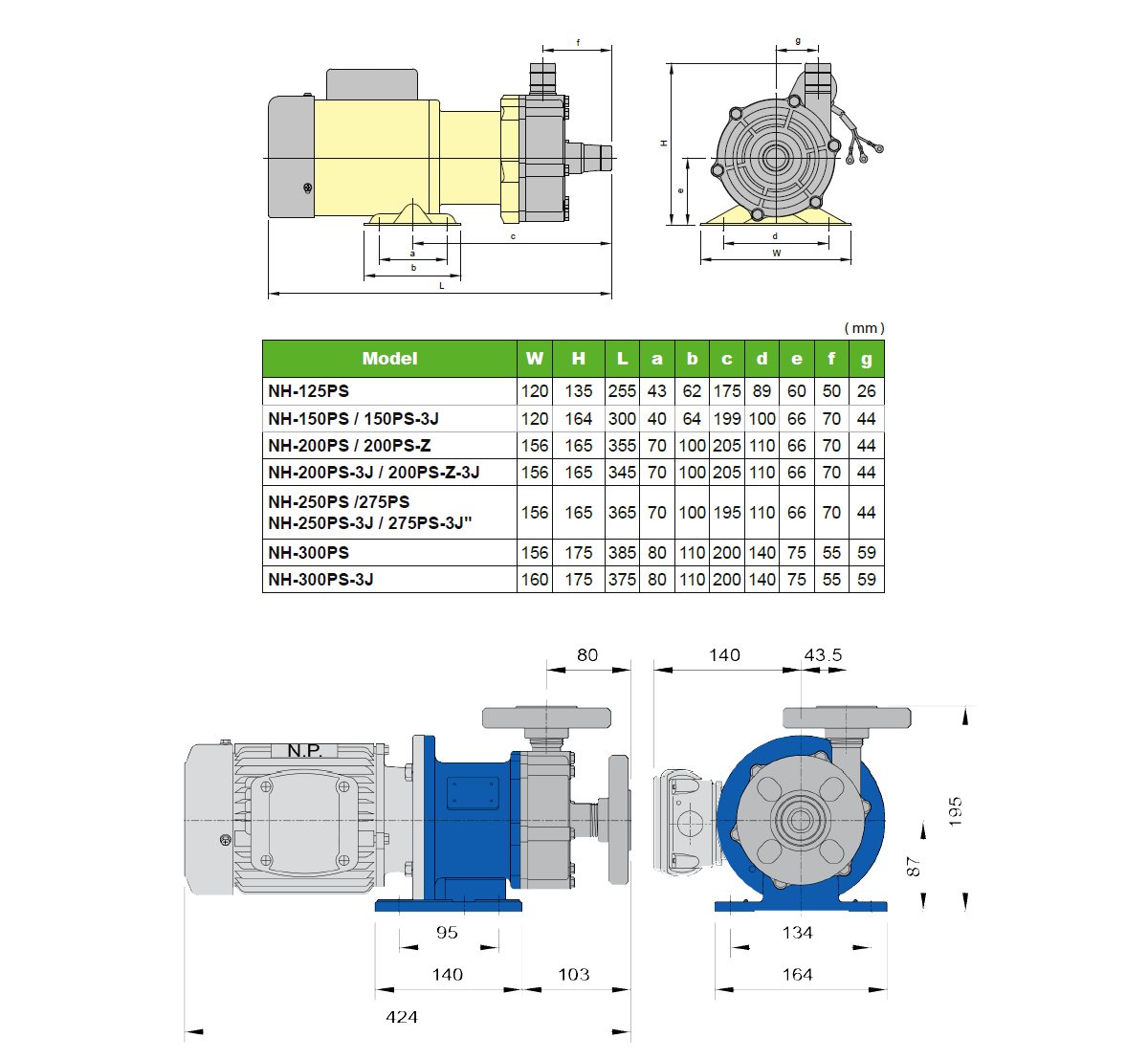

  • Installation dimensions PS Serie Pan World

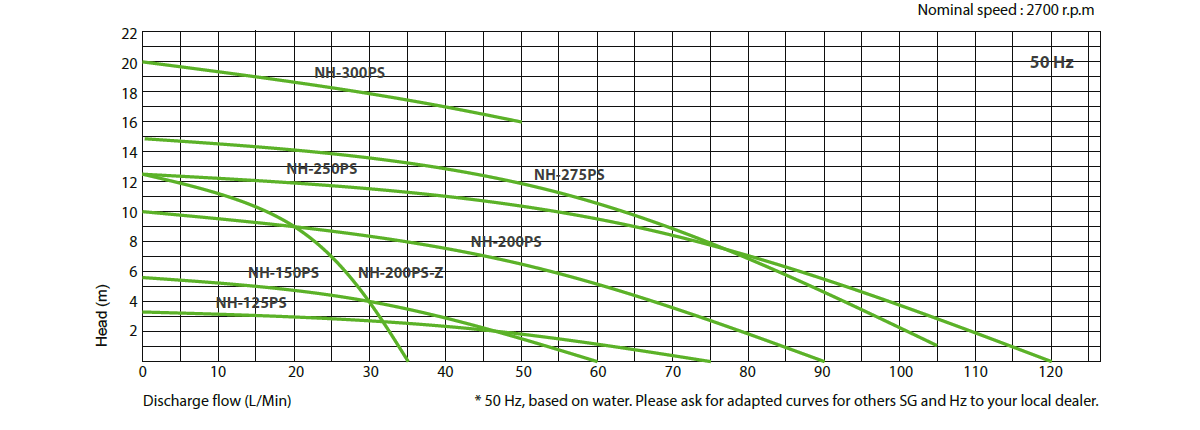

  • Performance curve PS Serie Pan World

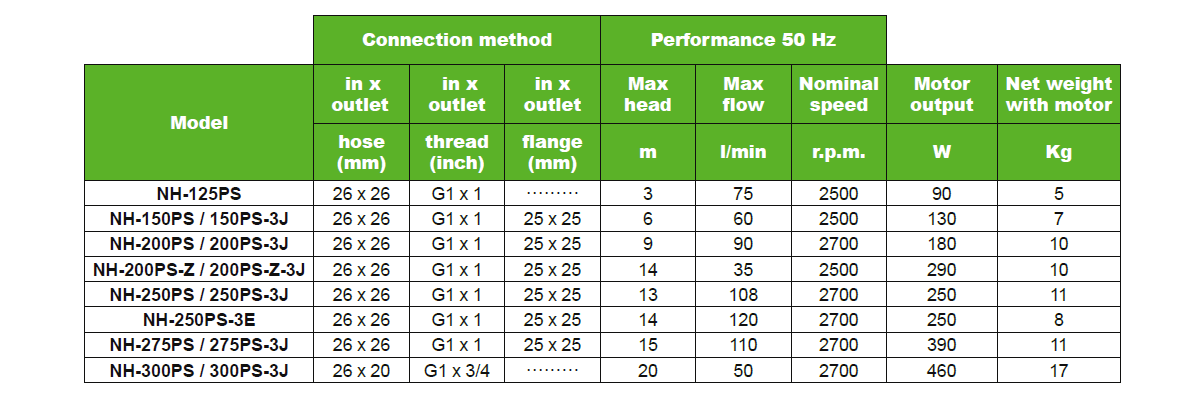

  • Specification table PS Serie Pan World

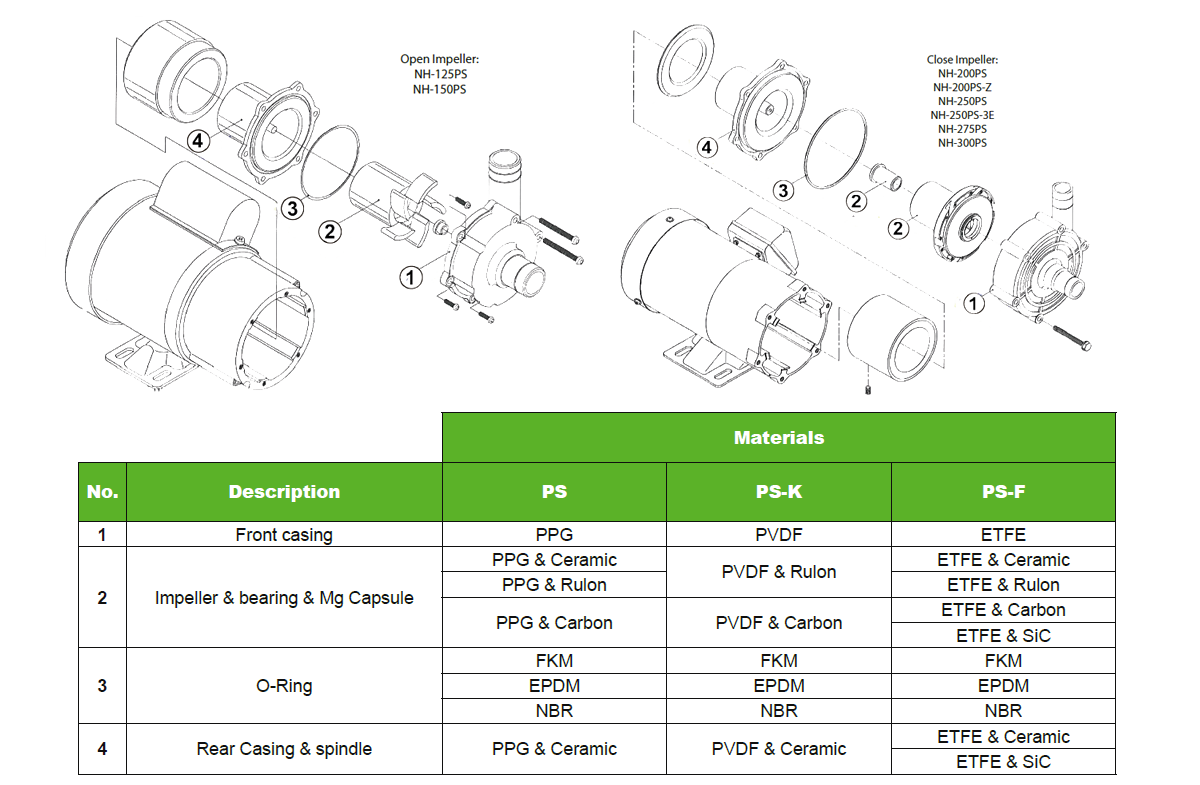

  • Parts Lists PS Serie Pan World
