Pan World Pump PW Serie

Pan world PW Series

Industrial pump for chemicals, with possibility of Atex certification for ETFE models.For industrial use general, chemical process, tanks loading and unloading, absorption towers...

  • Construction materials: PPG, PVDF or ETFE
  • Connections: Threaded NPT or BSP, DIN or ANSI Flanges
  • Flow rate (50Hz) up to 1400 L/min and total discharge head of 34 m.


Surface Treatment(PCB Equipment, Etching Equipment, Solar Equipment, LED Equipment), Filter, Chemical, Eelctricostatic Plating, Water Treatment, Chemical Processing, Food Processing, Scrubber, Environmental Protector, Chemical Transfer, Microchip Manufacturing, Semi-Conductor, Battery Industry, Laboratory Application, Paper Industry, Pharmaceutical

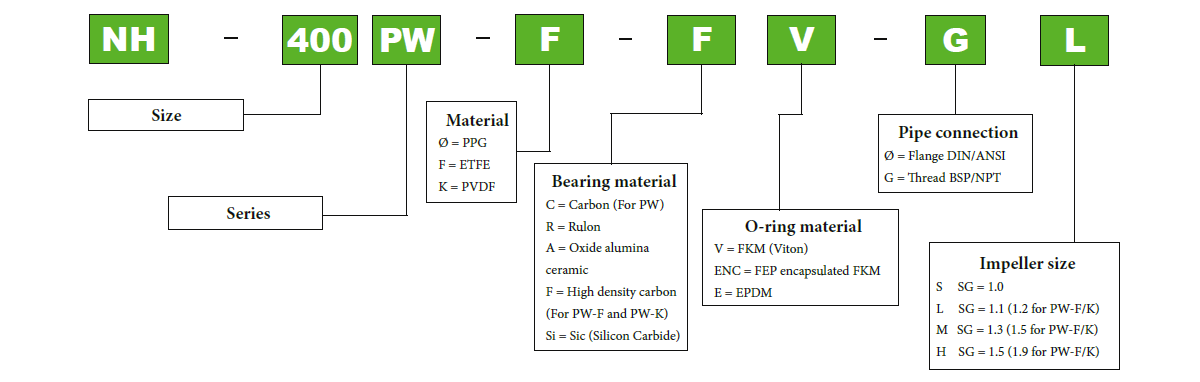

  • Ordering Information PW Serie Pan World

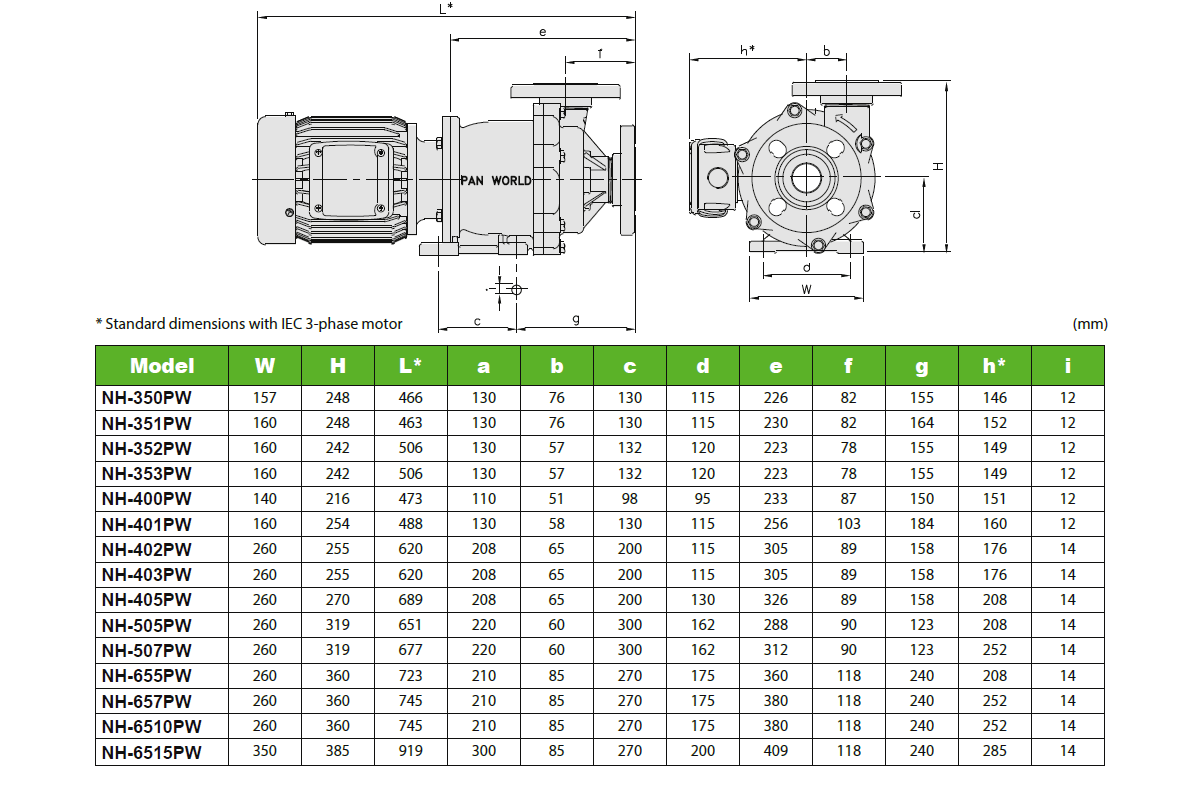

  • Installation dimensions PW Serie Pan World

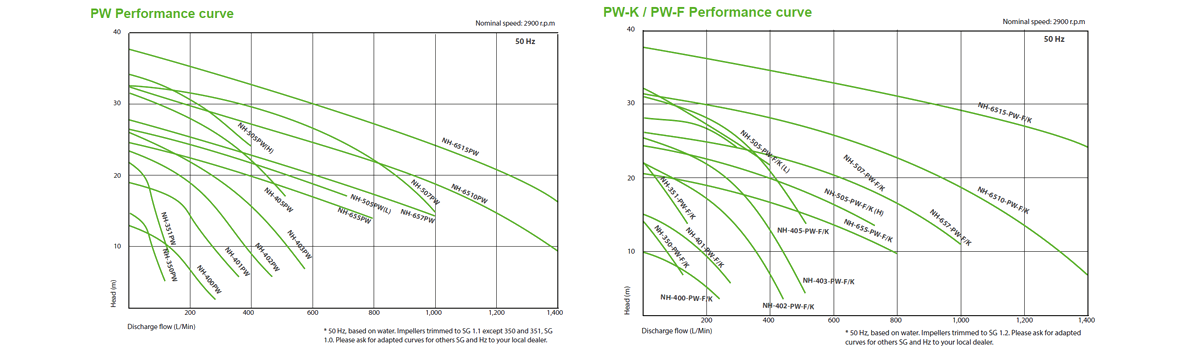

  • Performance curve PW Serie Pan World

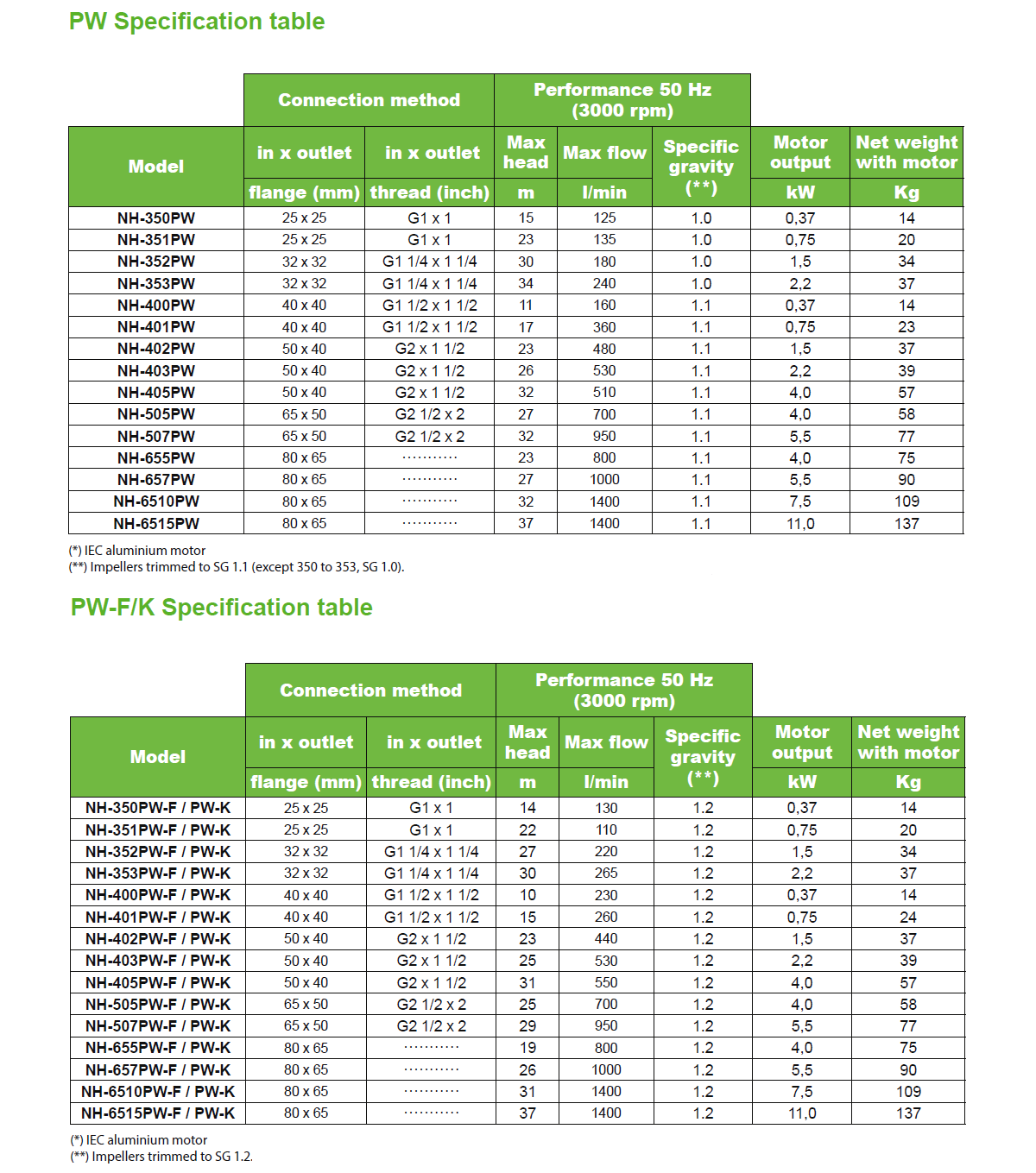

  • Specification table PW Serie Pan World

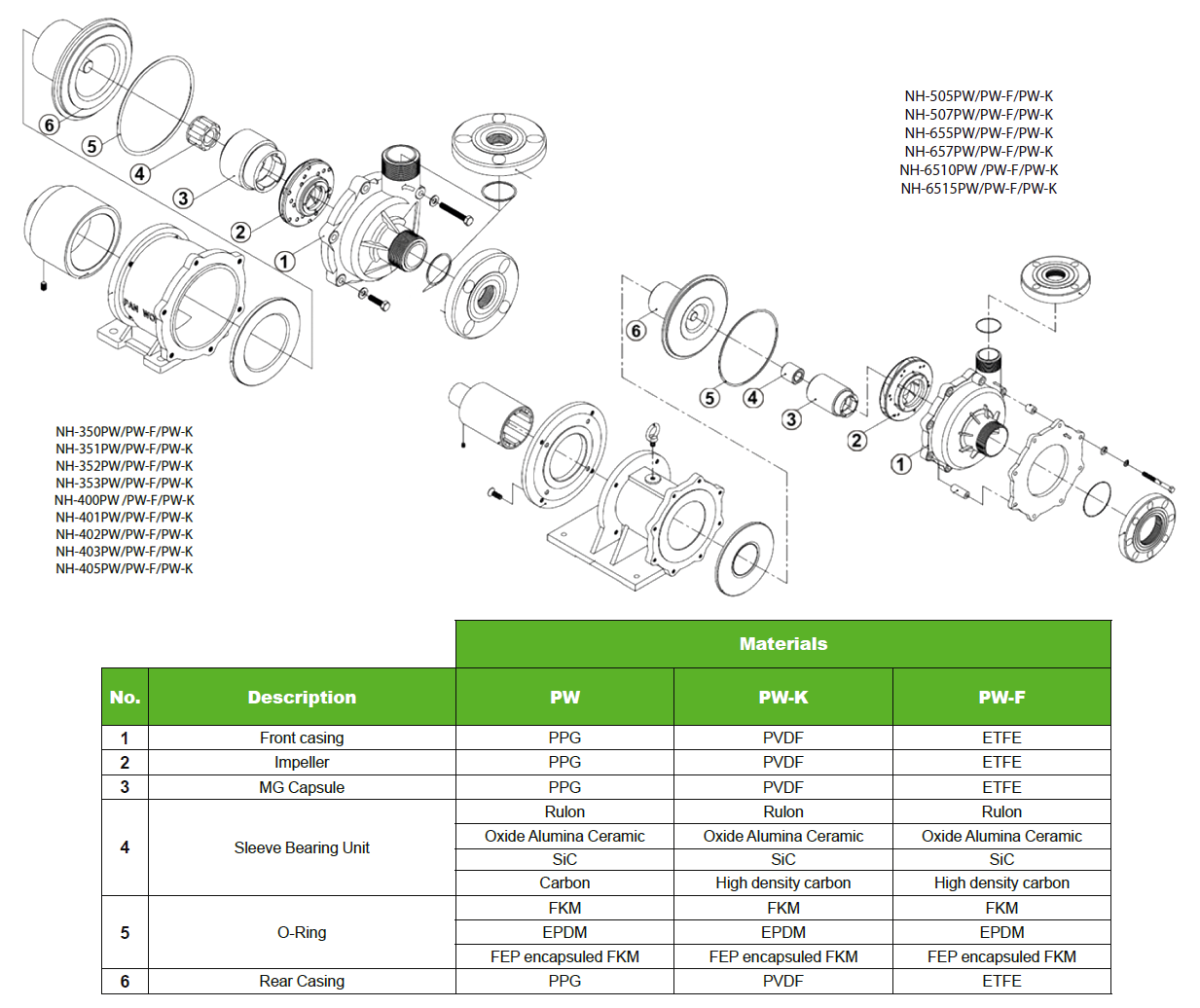

  • Parts Lists PW Serie Pan World
